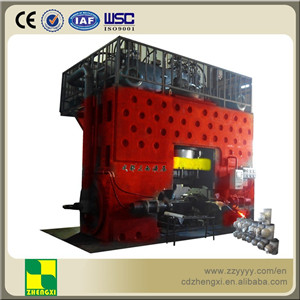

Tee Pipe Fitting Wifhin HV Compression Moulding Machine

Product model：Yz65

Product number：40

Feature：

slide proportional speed system, blanking buffer device, hydraulic plate proportional system, photoelectric protective device, cooling device, die protect device, displacement transducer, industrial t

Details

TEE EXTRUSION HYDRAULIC PRESS

Yz65 Series

MACHINE APPEARANCE

DATA SHEET

Model	Yz65-400T	Yz65-700T	Yz65-1000T	Yz65-1200T	Yz65-1500T	Yz65-1800T	Yz65-2000T
Normal Force(KN)	4000	7000	10000	12000	15000	18000	20000
Liquid Pressure(Mpa)	25	25	26	27	27	28	28
Working Stroke(mm)	200	250	300	350	400	450	500
Window Dimension(mm)	650	750	950	1150	1350	1500	1650
Working Speed(mm/s)	100	100	100	100	100	100	100
Working Table Size(mm)	700600100	800700160	900850150	1000900150	1000900150	13001200250	15001400250
Motor Power(KW)	29.5	44.5	55	71	105	110	132
Outline Dimension(mm)	250010003500	700020004000	350024004500	100025005000	190029006000	500030006500	520032007000

ACCESSORIES BRAND

OPTIONAL ACCESSARIES
